Lavina Series 7 L25E Concrete Polishing Machine for Commercial Sites
Water Tank | 20 Litre |
---|---|
Size | 71x28x48 inches or 180x71x122 cm |
Power | 10 HP or 7.5 KW |
- Mid-size concrete polishing machine
- High performance at a low cost
- Redesigned frame for greater manoeuvrability
- Integrated weights for more potent results
- 3-phase, 220V
Lavina L25E Concrete Polishing Machine - Easy to Use on Commerical Sites
Lavina L25E is the best-selling floor machine from Superabrasive’s Lavina range of mid-size polishing machines. Customers are drawn to this concrete polishing machine for its versatility, productivity and low cost.
In 2004, Superabrasive began producing their own range of polishing and grinding machines under the name, Lavina. As time goes on, the Lavina range floor equipment has only expanded with each machine being developed for greater effectiveness and efficiency. There is no better example of this than the Lavina L25E Concrete Polishing Machine. It is a member of the Lavina Series 7 range.
As evidence of it being one of the latest models in the Lavina range, L25E has numerous new features and design choices that make it ideal for polishing concrete surfaces.
Key Features
Reconstructed Frame - The first of these features is an entirely restructured frame that provides increased manoeuvrability so it is suitable for use around awkward spaces.
New Planetary Drive - The planetary drive has an entirely new chain-driven design with no chain tensioner.
Isolated Grinding Head - Furthermore, the grinding head is isolated with rubber bushings to reduce vibrations for users.
Efficient Power Transmission - There are more robust time belts, seals, shafts, bearings and lighter pulleys. These features offer more efficient power transmission during the grinding process.

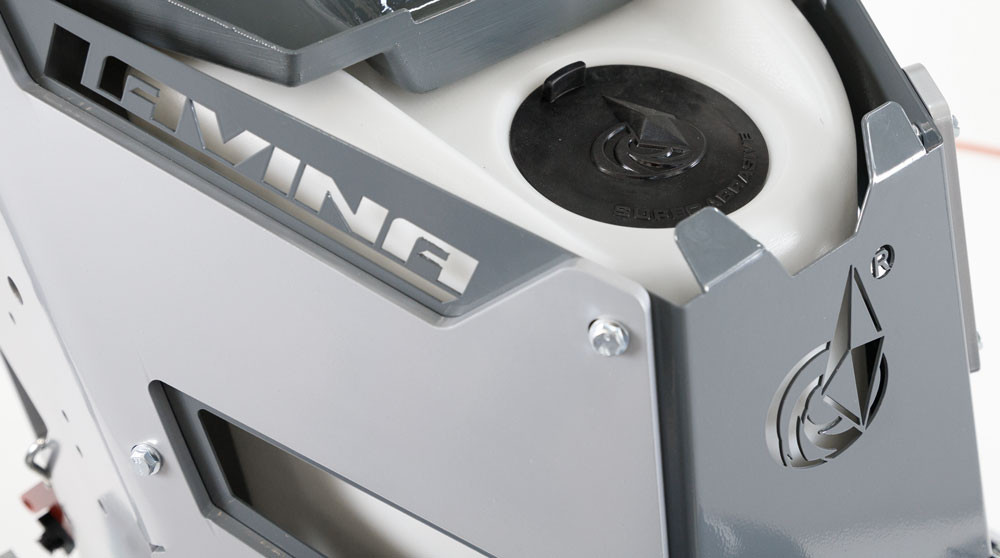

Other - This concerte grinding machine has an internal storage compartment and water tank cup.
Benefits -
Easy Tool Changes - The newly designed frame allows for easy tool changes.
Longer Service Life - Additionally, the Lavina L25E features a 2-piece aluminium main belt housing with a belt inspection cover to ensure longer service life without the need for maintenance. In addition, this electric concrete polisher uses refined the planetary drive for more robust grinding with less maintenance.

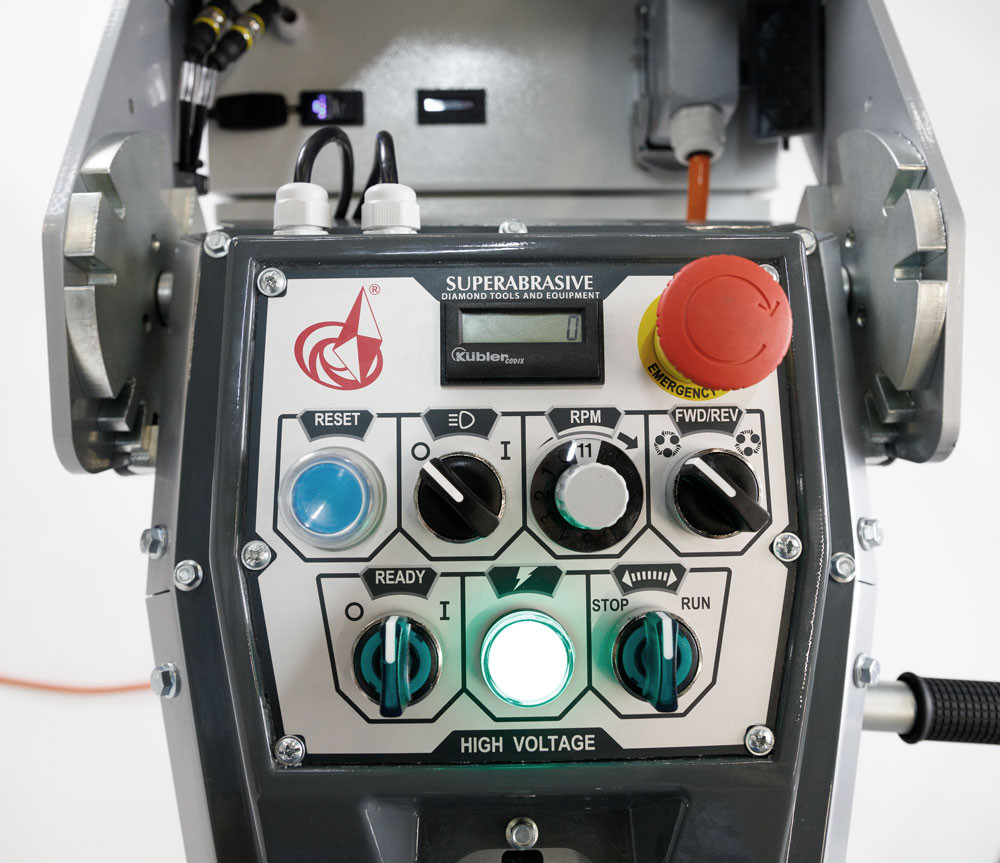

Maximum Control - L25E concrete polishing machine has the most intuitive handlebar for faster adjustability and range of movement.
We recommend using a 22.5 KW generator with the L25E concrete floor polisher. In contrast, the L25LE should be used with a 33 KW generator.
L25E Concrete Polishing Machine Specs |
L25LE Concrete Polishing Machine Specs |
Power output - 10 HP / 7.5 KW | Power output - 15 HP / 11 KW |
Voltage (50-60 Hz)- 3 ph x 380-400 V | Voltage (50-60 Hz) - 3 ph x 200-240 V |
Weight -754 lbs or 342 Kg | Weight -400 Kg |
Size of the machine (LxWxH) - 71x28x48 inches or 180x71x122 cm | Size of the machine (LxWxH) - 71x28x48 inches or 180x71x122 cm |
Size of the crate (LxWxH) - 58x33x57 inches or 148x84x146 cm | Size of the crate (LxWxH) - 58x33x57 inches or 148x84x146 cm |
Grinding Pressure - 329-514 lbs / 149-233 kg | Grinding Pressure - 342-520 lbs / 155-240 kg |
Max Amperage - 15 Amp | Max Amperage - 30 Amp |
Dedicated breaker - 15 Amp | Dedicated breaker - 30 Amp |
Attachment Speed - 300-1100 rpm | Attachment Speed - 300-1100 rpm |
Working Width - 25.8 inches or 655 mm | Working Width - 25.8 inches or 655 mm |
Tool Holder Diameter - 3x9 inches or 3x225mm | Tool Holder Diameter - 3x9 inches or 3x225mm |
Vacuum Port - Camlock E250 | Vacuum Port - Camlock E250 |
Water Tank - 5.2 gal or 20L | Water Tank - 5.2 gal or 20L |
Water Feed - Taken or hose connection | Water Feed - Taken or hose connection |
Cable Length - 57 ft or 17.4 m | Cable Length - 57 ft or 17.4 m |
